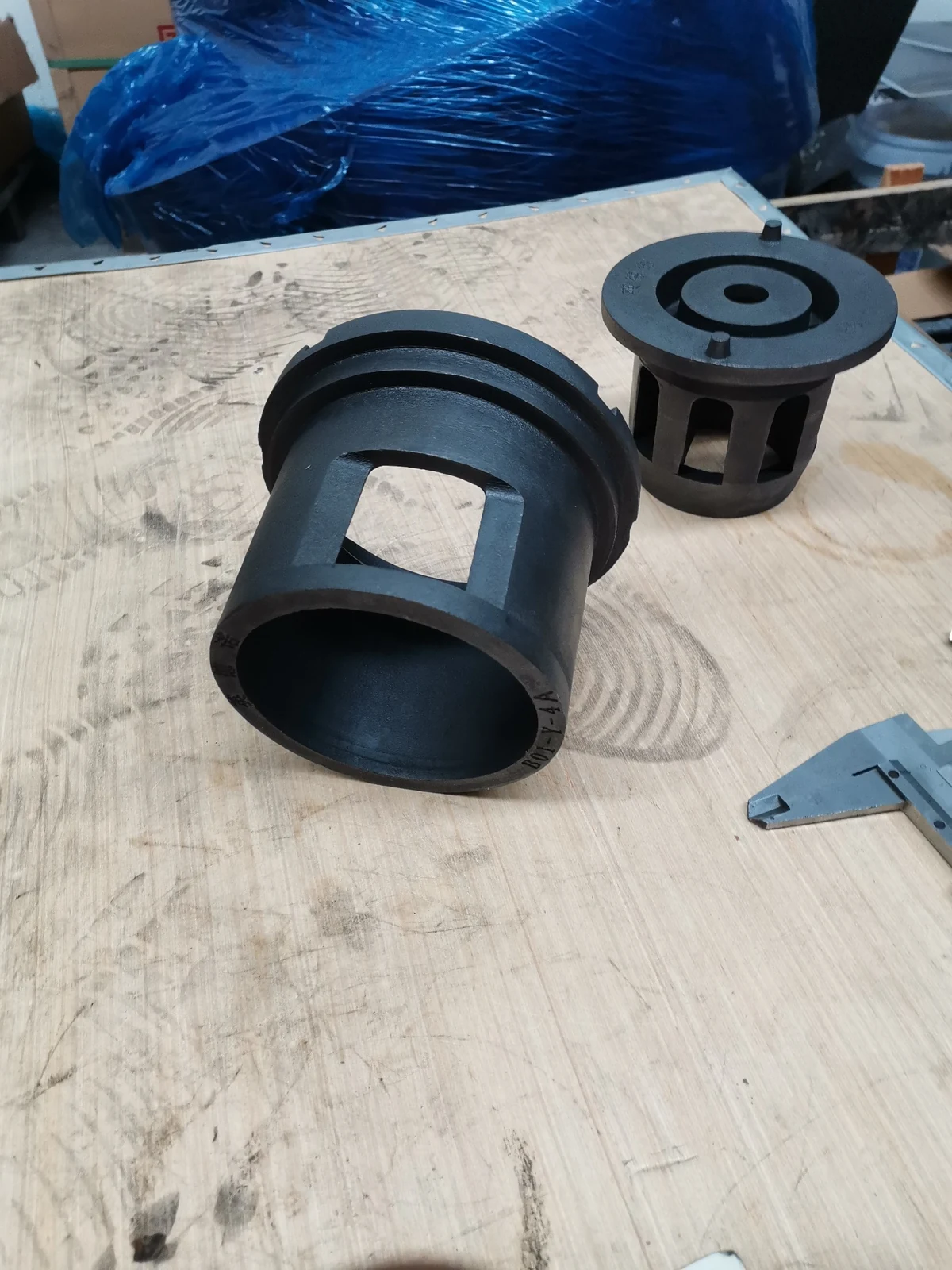

Spare Parts Classification
Review common replacement-part groups before preparing photos, dimensions and inquiry details.
PARTS IDENTIFICATION HUB

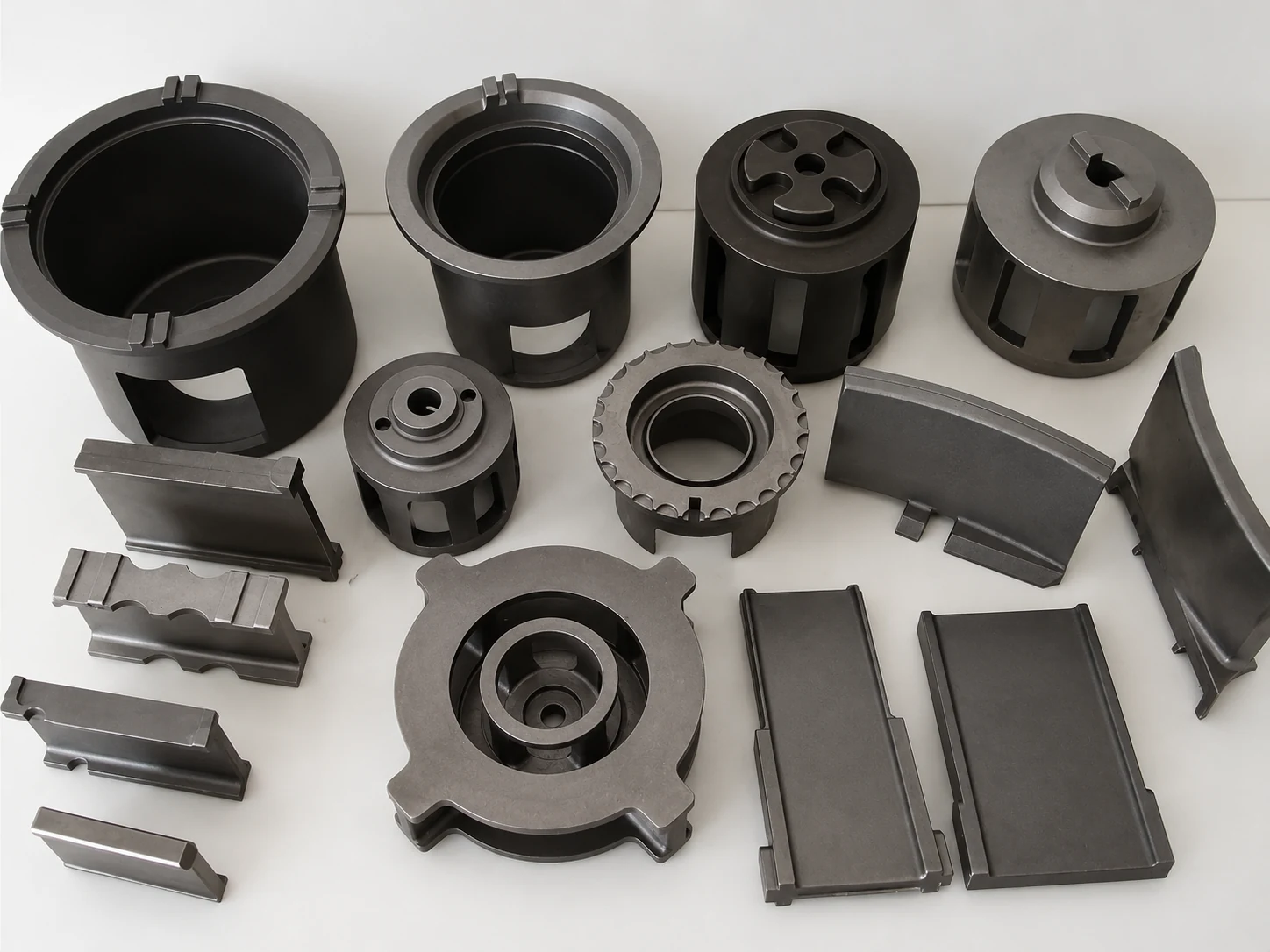

How to Identify Shot Blasting Spare Parts
Start with what you can verify: clear photographs, repeatable dimensions, an old drawing or sample, and the machine context. Use the guides below to organize that evidence before requesting a replacement-part review.
Direct answer: an unknown shot blasting spare part is easier to review when the evidence shows the complete part, its mounting and working faces, several useful dimensions, and where it fits in the machine. Add the OEM number or drawing when available, but do not rely on one photograph or one measurement alone.
Published identification resources
Choose What You Need to Identify
Start with the route that best matches what you already know. Only completed resources are listed here.
Photo identification
Identify a Spare Part from Photos
See which full views, markings, worn areas and measurement references make a photo set useful.

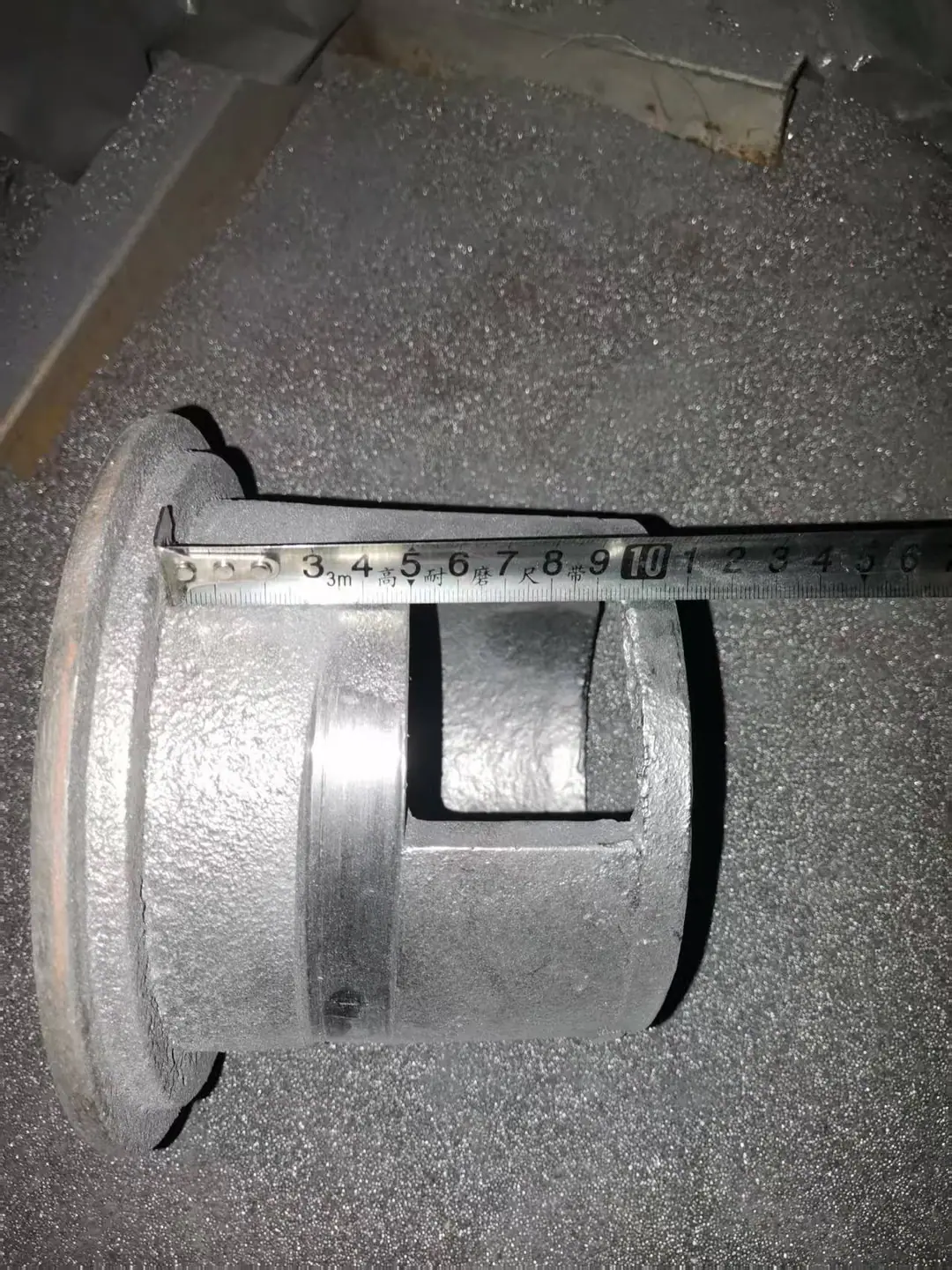

Control cage evidence
Control Cage Identification
Follow a real measurement sequence using user-confirmed control-cage photographs without inferring an OEM number or fitment.
Direct review route
Cannot identify the part from the published guides?
Send clear photographs, recorded dimensions and any machine or drawing information you can verify.
Send Photos & DimensionsMore identification examples will be added as verified technical evidence becomes available.
Prepare useful evidence
What to Photograph and Measure
A good identification set does not need to be complicated. It needs to show the same part from enough angles and explain where each measurement was taken.

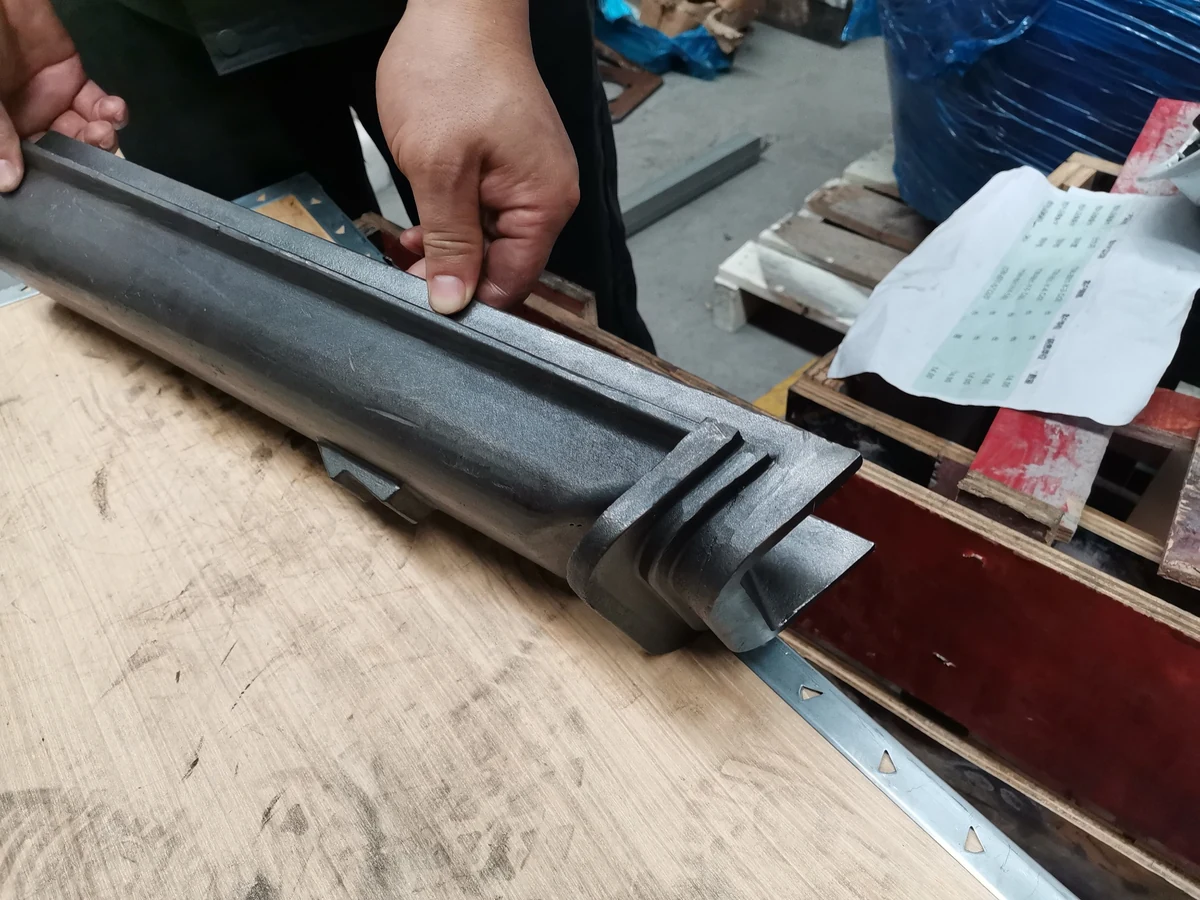

Full views
Photograph the complete part from the front, side and opposite side.
Mounting details
Show holes, flanges, shoulders, keyways and the faces that locate the part.

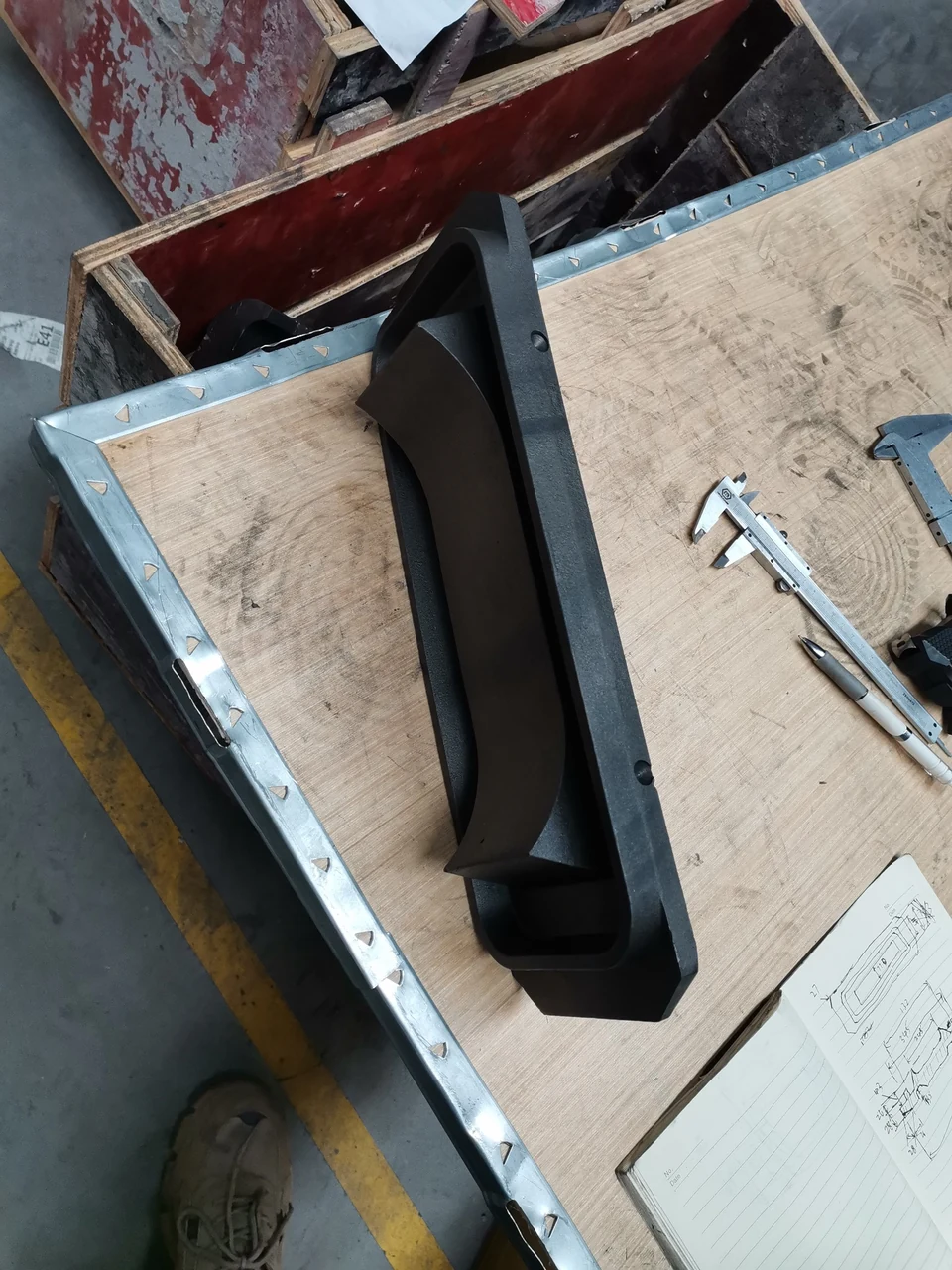

Dimensions
State which faces were measured and record the reading separately from the photograph.
Wear areas
Include close views of damaged edges, openings and working surfaces.
Drawing or sample
Add an old drawing, sketch or sample reference when one is available.
Machine context
Include the machine nameplate, wheel model or installed position when available.
Ready for part review?
Send the evidence you can verify
Attach photographs, dimensions, drawings or old-sample details, then add the machine model and destination when available.
