Blast wheel unit
Blast Wheel Assembly for Shot Blasting Machines
A blast wheel assembly is the core throwing unit of a wheel blast machine. Xindong reviews blast wheel assemblies with motor, without motor, direct drive assemblies and pulley-driven assemblies from photos, drawings, mounting details and machine information.
Blast wheel assembly usually refers to the wheel housing and internal throwing parts such as blades, impeller, control cage, feed spout, hub and liners. Before quotation, buyers should confirm the drive type, mounting base, rotation direction, old unit photos, quantity and destination. For individual replacement parts for blast wheels, use the blast wheel parts page.
Assembly types
Choose the correct blast wheel assembly scope
Use these terms when preparing your RFQ. If you are not sure, send photos of the complete installed wheel and the motor or drive side.

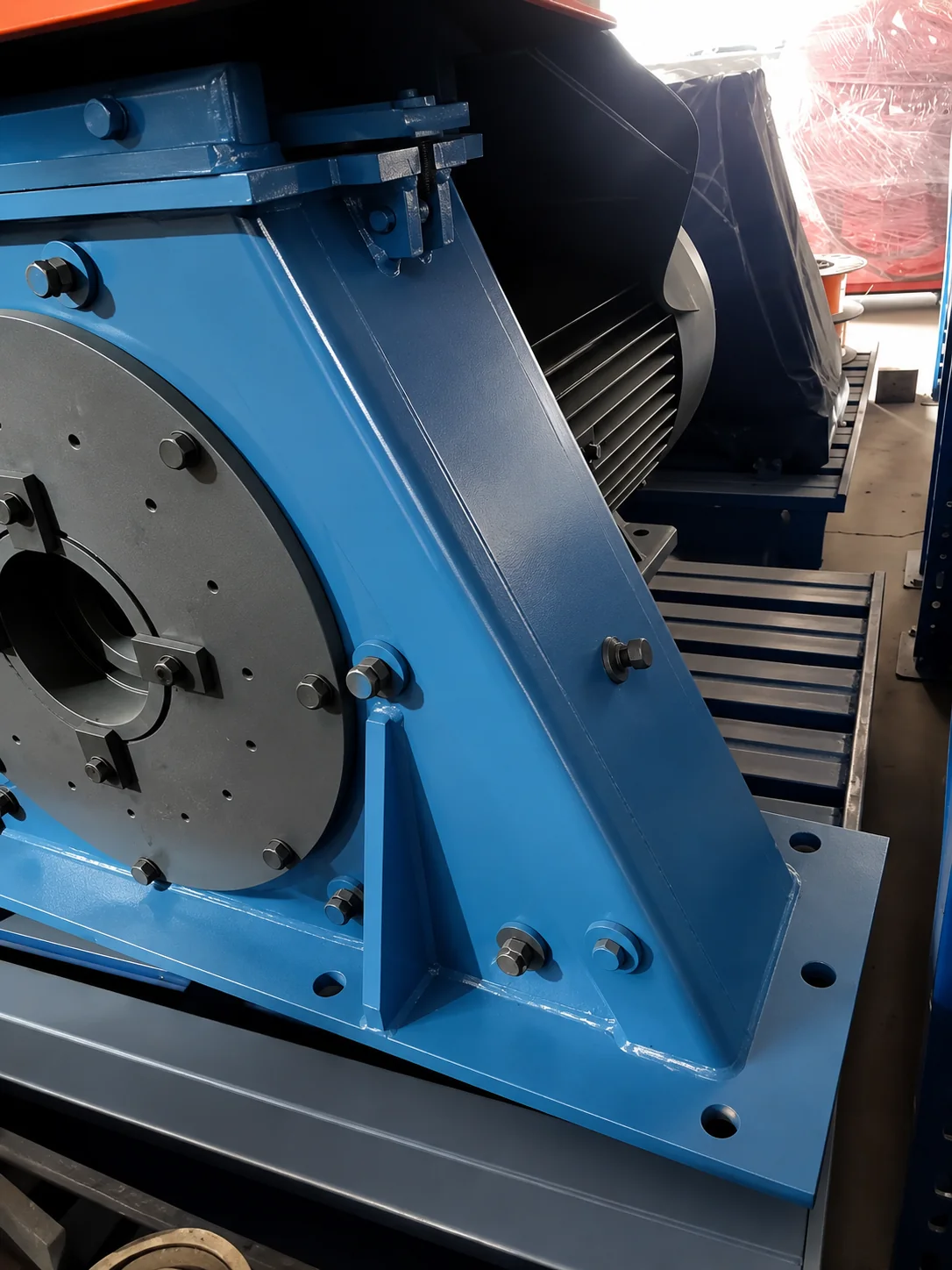

Blast Wheel Assembly with Motor
For replacement scope that includes the motor and wheel unit. Send motor power, nameplate, mounting base and installed photos.
Blast Wheel Assembly without Motor
For replacement scope where the buyer keeps the existing motor. Send shaft, coupling and mounting details.
Direct Drive Blast Wheel Assembly
For direct motor-to-wheel layouts. Confirm shaft layout, rotation direction, mounting dimensions and feed position.
Pulley-Driven Blast Wheel Assembly
For pulley-driven layouts. Confirm drive position, pulley side, motor side, wheel photos and mounting base.
Components
Main components to check before ordering
Impeller / Distributor Wheel
Feeds abrasive flow into the blade path. Quote by diameter, bore, keyway, height, photos and matching blade details.
Control Cage / Directional Sleeve
Controls discharge direction and blasting pattern. Quote by opening direction, outside dimensions and worn-area photos.
Feed Spout and Wheel Liners
Guide and protect abrasive-impact areas. Quote by installed position, shape, hole positions and old part photos.
Replacement signs
When to review the whole blast wheel assembly
It is safer to review the whole assembly when several related parts show wear or when performance changes are difficult to trace to one component.
- Cleaning efficiency drops or the blast pattern moves away from the target area.
- Vibration or noise increases around the wheel unit.
- Blades, impeller and control cage show uneven wear at the same time.
- Wheel housing liners or guard plates are heavily worn.
- The existing unit is old, modified or missing reliable part numbers.
RFQ checklist
Information needed for blast wheel assembly quote
| Information | What to provide | Why it matters |
|---|---|---|
| Machine model | Machine nameplate, wheel model or old supplier information if available | Provides the first fitment reference. |
| Assembly type | With motor, without motor, direct drive or pulley-driven | Defines quotation scope. |
| Installed photos | Front, side, motor/drive side, feed position and mounting base photos | Shows layout and connection details. |
| Dimensions | Mounting holes, wheel diameter, shaft/coupling details and feed spout position | Reduces wrong-unit risk. |
| Order details | Quantity, destination, urgency and document requirements if any | Helps prepare a realistic quotation scope. |
Related pages
Continue with related blast wheel parts
Blast Wheel Blades
Review blade shape, set quantity and mounting details.
Control Cages / Directional Sleeves
Confirm opening direction and blasting pattern control.
Impellers & Distributor Wheels
Prepare bore, diameter, height and photos for review.
FAQ
Blast wheel assembly FAQ
What parts are included in a blast wheel assembly?
A blast wheel assembly can include the wheel housing, blades, impeller, control cage, feed spout, wheel hub, liners and related mounting parts. The exact scope depends on the machine layout.
Can I replace only the blades or impeller?
Yes. Many RFQs are for separate internal wear parts. Send old part photos, dimensions and machine model before quotation.
What if I do not know the blast wheel model?
Send complete installed photos, machine nameplate, mounting dimensions, drive-side photos and old part photos. Xindong can review the available information before quoting.
RFQ
Send blast wheel photos, drive type and mounting details.
Attach old part photos, dimensions or drawings so the assembly scope can be reviewed before quotation.
