Custom Shot Blasting Spare Parts from Drawings or Samples
Xindong supports custom shot blasting replacement parts for buyers who need non-standard wear parts, replacements for older equipment, or parts manufactured from drawings, photos, dimensions or samples. Part geometry, mounting details, material or manufacturing requirements and quantity should be reviewed before quotation. Where original drawings are unavailable, worn samples and clear multi-angle photos can be used as reference information.
Overview: custom shot blasting replacement parts may be required when a standard catalog part cannot match older, modified or non-standard equipment. Buyers should provide drawings, old samples, photos, measured dimensions, material or manufacturing requirements, tolerance needs, quantity and working conditions for review.
Custom cases
When custom manufacturing is needed
Old machines
Older equipment may not have a clear part number or available original catalog.
Modified chambers

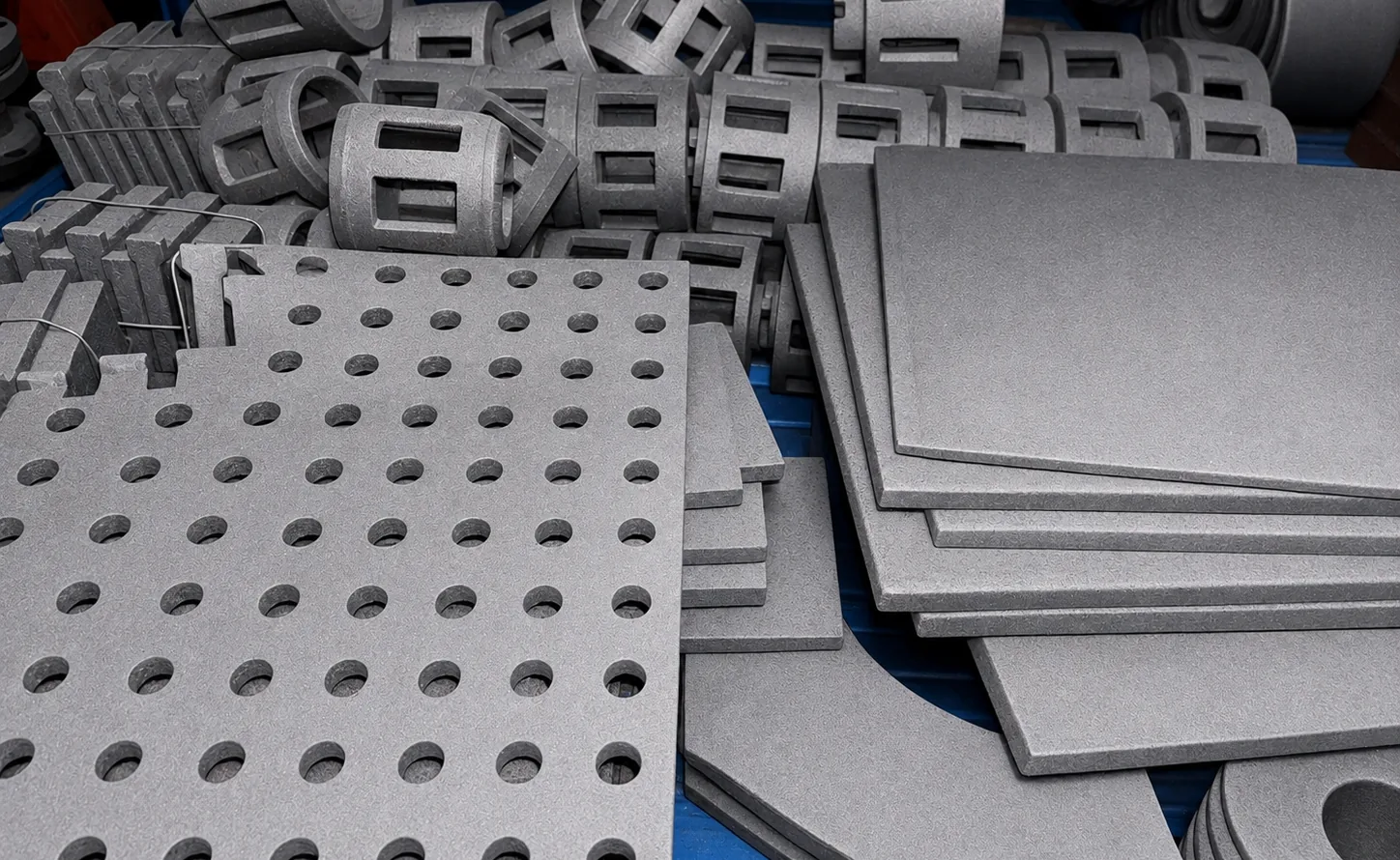

Shot blasting wear parts and chamber liners, including replacement liners, brackets or guards, may need custom hole positions or dimensions.
Distributor supply
Repeat orders may require stable part matching, packing and category organization.
Drawing and sample support
Drawing, sample and photo-based matching
Custom replacement starts with clear evidence. The goal is not just to copy shape, but to confirm fit, wear position, material expectation and whether the part can be installed without rework.
Compare the sourcing considerations for precision-cast parts and tool-steel replacement parts before finalizing the material or manufacturing requirement.
| Drawings | 2D drawings, sketches, dimensions, hole positions and tolerance if available |
|---|---|
| Samples | Old part photos, wear area, mounting surface and installed position |
| Material needs | Known material, previous wear issue, abrasive impact and working condition |
| Order details | Quantity, destination, packing requirement and trial or batch order plan |
Custom RFQ process
How the custom parts review works
Send evidence
Drawing, sketch, old part photos, sample photos or installed position photos.
Confirm dimensions
Length, width, thickness, holes, fitting surfaces and critical tolerance.
Review material
Material request, wear condition, abrasive impact and operating environment.
Quote and pack
Quantity, production review, packing and delivery information are confirmed.
FAQ
Custom replacement parts FAQ
Can you make shot blasting parts from drawings?
Yes. Drawings can be reviewed for custom wear parts, liners, brackets and other replacement components.
Can you copy an old worn part from photos or sample?
Old part photos or samples can help identify shape, dimensions and wear position. Critical dimensions should still be confirmed before quotation.
Do you support private-label or distributor packing?
Private-label marking and distributor packing requirements can be discussed according to the part type, quantity, marking requirements and confirmed order terms. Xindong does not claim official authorization from third-party equipment brands unless such authorization is explicitly documented.
What tolerances and material information are needed?
Provide drawing tolerance if available, material request, installation position, dimensions, hole positions, fit surfaces and old-part photos.
Can you produce a small trial order before batch supply?
Trial order feasibility depends on part type, tooling needs, material, quantity and production review.
Custom RFQ
Send drawing, old part photos, material request and quantity
For non-standard parts, include installation photos and any critical tolerance or fit requirement.
