How to Identify a Shot Blast Control Cage from Photos and Key Dimensions

Real measurement example

Read the part before reading the ruler

A useful measurement set begins with a view that shows the whole part. On this cage, the flange, cylindrical body, machined band and rectangular opening are visible in the same frame. That makes it easier to understand where a measured span sits on the part.

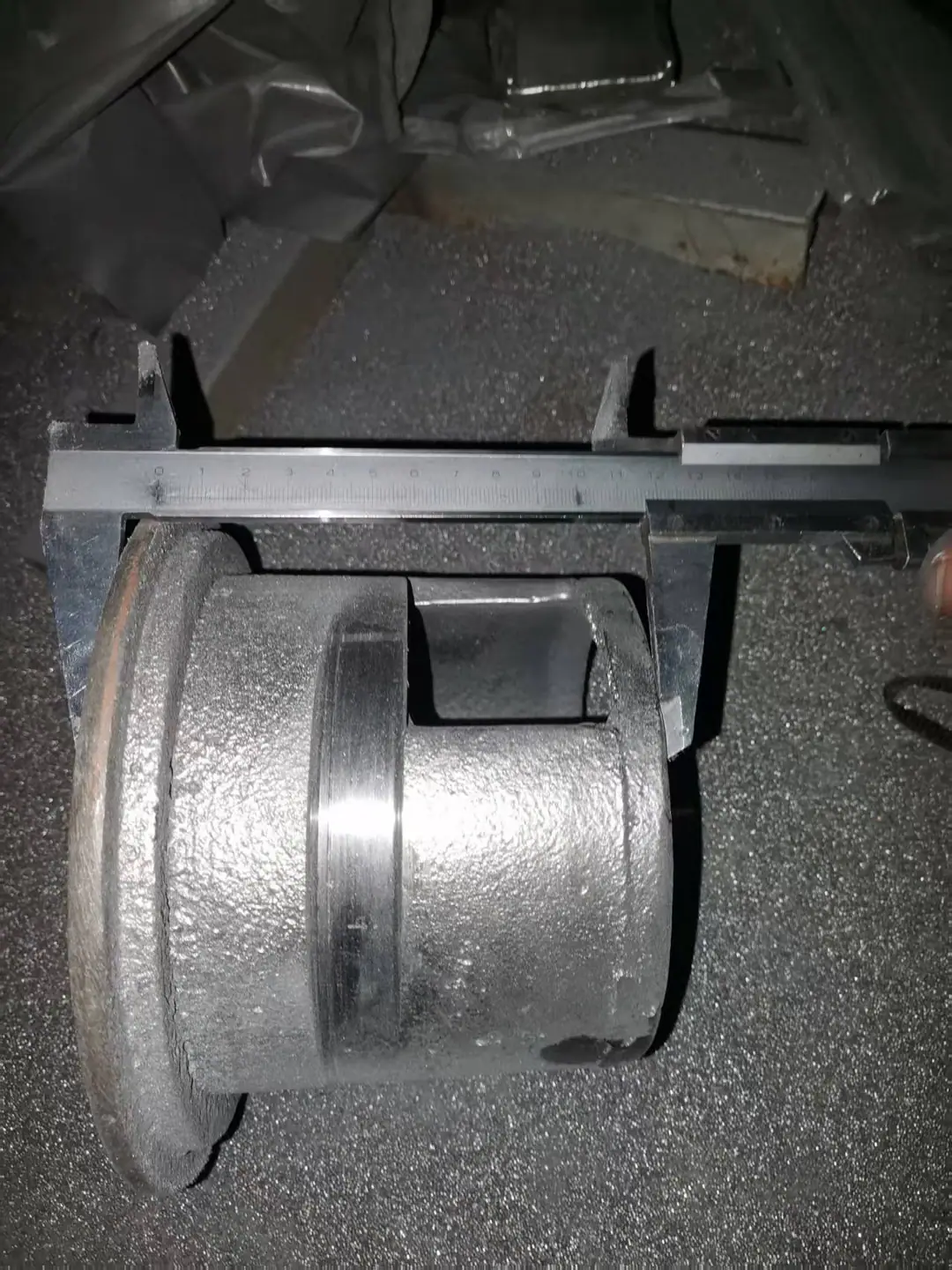

The caliper view adds a second reference for the side profile. It is evidence of the measurement method, not permission to copy a number from the photograph. For an RFQ, the buyer should record the reading directly and state exactly which faces were measured.

Begin by checking whether the part belongs to the same broad geometry family. Only then compare individual dimensions.

Overall geometry

Start with the body, flange and locating surfaces

Before comparing small details, note the basic construction: a round body, the flange form, the cylindrical section, the inner opening and the discharge window. These features quickly rule out cages from a different family.

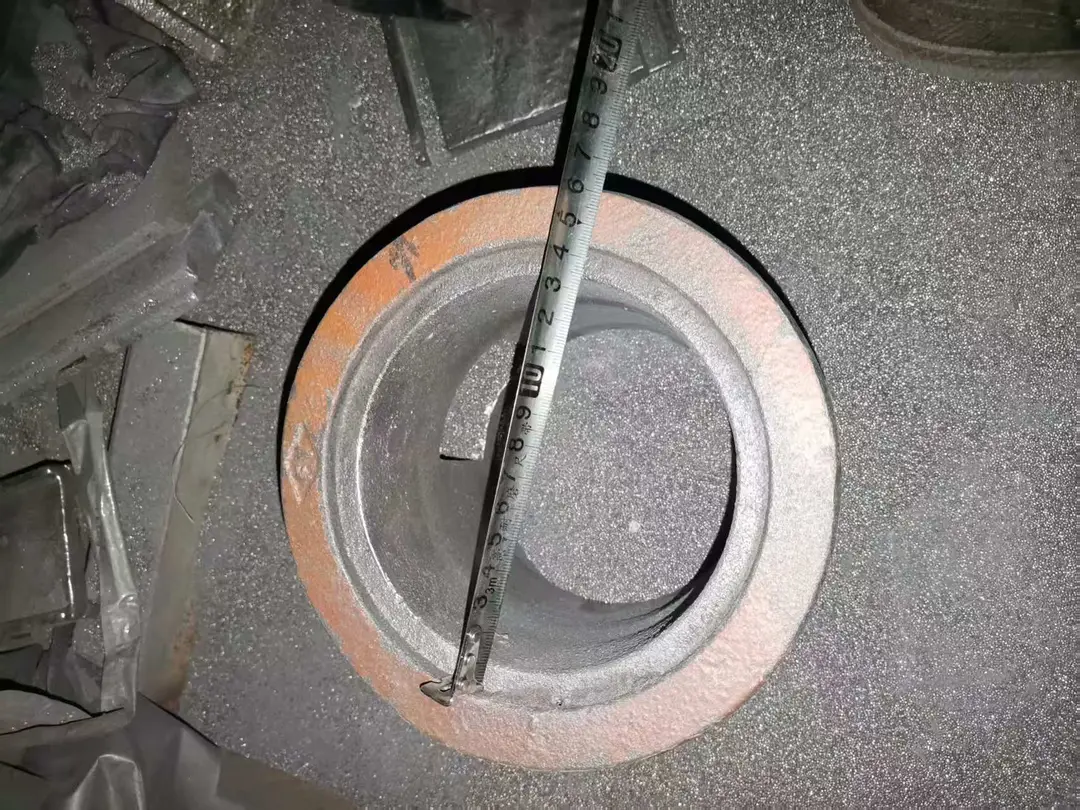

Outer diameter and flange diameter are useful starting points, but they are not interchangeable. Also record flange thickness, the shoulder or locating face, and where the flange sits relative to the body. Those surfaces matter when the cage is seated and positioned inside the blast wheel.

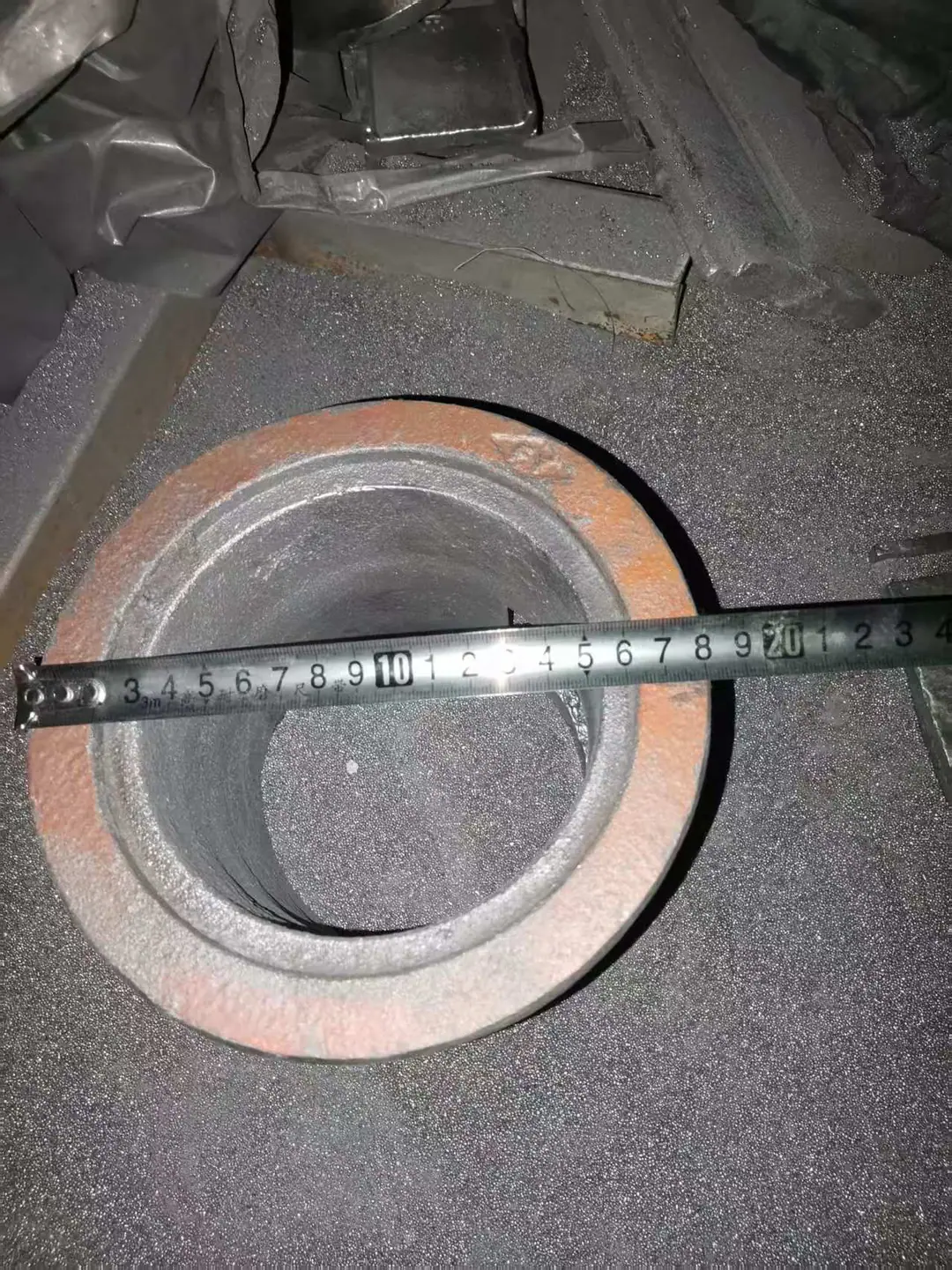

A top photo should be taken square to the flange where possible. An angled view can hide the shoulder and make a circular opening appear oval.

Critical identification feature

The control window often separates similar cages

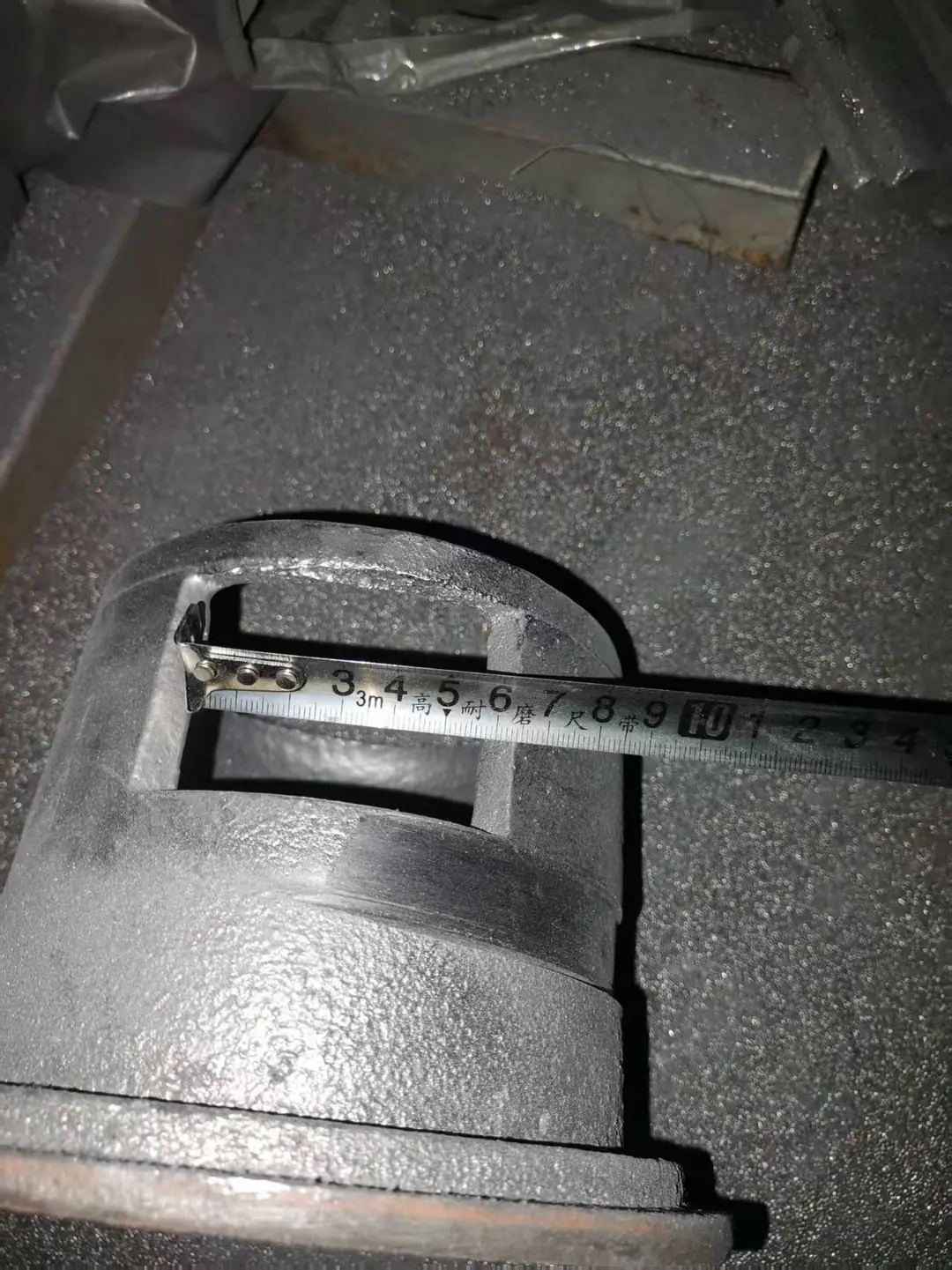

Two control cages may look close in overall diameter and height but still use different discharge openings. Record the window width and height, its shape, the edge profile and its position in relation to the flange.

The window orientation should also be photographed. If an opening angle is known from an OEM drawing, include it as a reference. Do not estimate an angle from a handheld photo.

Opening geometry is part of the fitment review because it is tied to abrasive discharge and the blast pattern. A cage with the wrong window position should not be treated as a match simply because the body diameter is close.

Inner geometry

The inner opening is more than one diameter

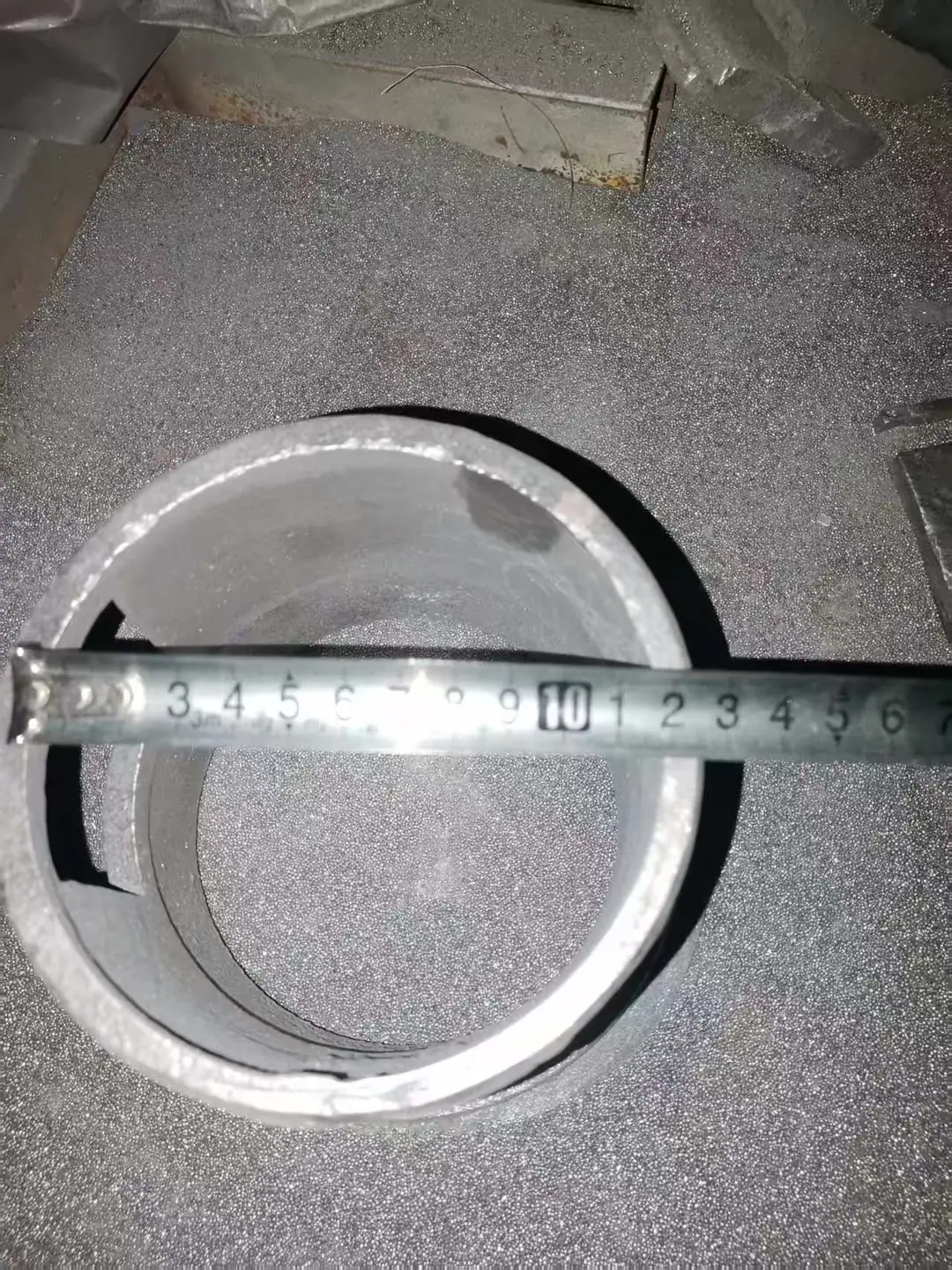

Record the inner opening, but also look inside the cage. The internal cylindrical profile, wall thickness, steps, shoulders and opening-edge shape may differ between parts that share a similar nominal bore.

Wear can make an opening wider or less regular than the original form. Mark whether the tape or caliper touches a worn edge, a machined surface or a protected reference area. If the edge is heavily eroded, add another measurement from a less-exposed surface rather than presenting the worn span as the original size.

Measurement record

Key dimensions to record

Write each value next to a simple sketch or a clearly labelled photo. The description of the two contact faces is as important as the number.

Measurement	Why it matters
Outer diameter	Provides a basic body-size reference.
Inner opening	Helps distinguish the internal cage geometry.
Overall height	Separates cages with similar diameters but different body depth.
Flange diameter	Provides an important mounting and locating reference.
Flange thickness	Helps compare the seating geometry.
Control window width	Records a critical opening feature.
Control window height	Supports comparison of the discharge geometry.
Window position	Distinguishes cages with similar body sizes.
Body wall and shoulder geometry	Supports the fitment cross-check.

Cross-check

Add blast wheel and machine context

Part geometry comes first, but machine context can remove ambiguity. Useful supporting information includes a blast wheel photo, machine nameplate, wheel model, wheel diameter, blade count, motor power and any old part number still available.

No single item on that list determines the cage model. Motor power alone, for example, is not enough. Use the context to check whether the measured cage makes sense for the wheel family and installation position.

For the surrounding component layout, see the blast wheel parts overview.

Buyer photo checklist

What photos help identify a control cage?

• Full top view and full side view.
• Flange face and locating shoulder.
• Inner opening and any internal step.
• Control window close-up and its position relative to the flange.
• Tape beside the complete part for scale.
• Caliper on clearly identified contact faces where possible.
• Part installed in the blast wheel, if available.
• Machine nameplate or blast wheel model, if available.

For a broader photo sequence covering other spare parts, use the shot blasting spare-parts photo identification guide.

When photos are not enough

Use the old sample for a direct comparison

If several candidate designs remain after the photo and dimension review, an old physical sample becomes valuable. It allows direct comparison of the body, mounting fit, opening position and reference dimensions.

Send a drawing if one exists, even if it is incomplete. A hand sketch that labels the measured faces is also useful. The aim is not to force a conclusion from one source; it is to make the different sources agree.
