Shot Blasting Machine Spare Parts List: Common Replacement Parts Explained
Before asking for price, classify the worn part first. A clear part category, machine model, photos, key dimensions and quantity help Xindong review the replacement path and reduce wrong-part risk.
Direct answer: common shot blasting machine spare parts are best grouped by replacement need: blast wheel parts, blast wheel blades, control cages / directional sleeves, impellers / distributor wheels, wear plates / chamber liners / guard plates, and custom wear parts from drawings or samples. Start with the group, then confirm machine model, photos, dimensions and quantity.
Start with category
First turn the question into: which group is this part?
Many overseas buyers are not delayed because the supplier refuses to quote. They are delayed because the first message only says "please quote this part" while the part name, machine context and dimensions are still unclear. In shot blasting equipment, similar-looking metal parts may have different names across OEMs, different wheel generations or modified machines. A part that looks like a small wheel in one system may be described differently in another system.
For a parts-first site like Xindong, the practical starting point is not a complete-machine explanation. It is a usable spare-parts map. If a maintenance team, distributor or service company can place the worn component into the right group first, the next RFQ step becomes much clearer. The buyer can then describe the installed position, send photos, measure the critical areas and explain whether the request is for a single piece, a set or a replenishment batch.
This classification also reduces wrong-part risk. A short English name is not enough for older machines, imported systems or equipment that has been retrofitted. The same word may not mean the same structure under every brand. Treat the name as a starting clue, not as proof that the replacement is confirmed.
Six common groups
Common replacement parts and RFQ details
The groups below are written for purchasing communication. They help buyers prepare information before asking Xindong to review a worn component.
| Part group | Typical items | What to confirm before quote |
|---|---|---|
| Blast wheel parts | Blast wheel assembly, feed spout, wheel liners, guard plates | Wheel model, drive type, photos, mounting base and rotation direction |
| Blast wheel blades | Blade set, vane set or single blade replacement | Width, length, thickness, mounting profile, set quantity and old blade photos |
| Control cages / directional sleeves | Control cage, directional sleeve, opening-window parts | Opening direction, window shape, wall thickness, mounting face and photos |
| Impellers / distributor wheels | Impeller, distributor wheel and related center distribution parts | Front/back photos, OD, ID, bore, keyway, height and matching wheel information |

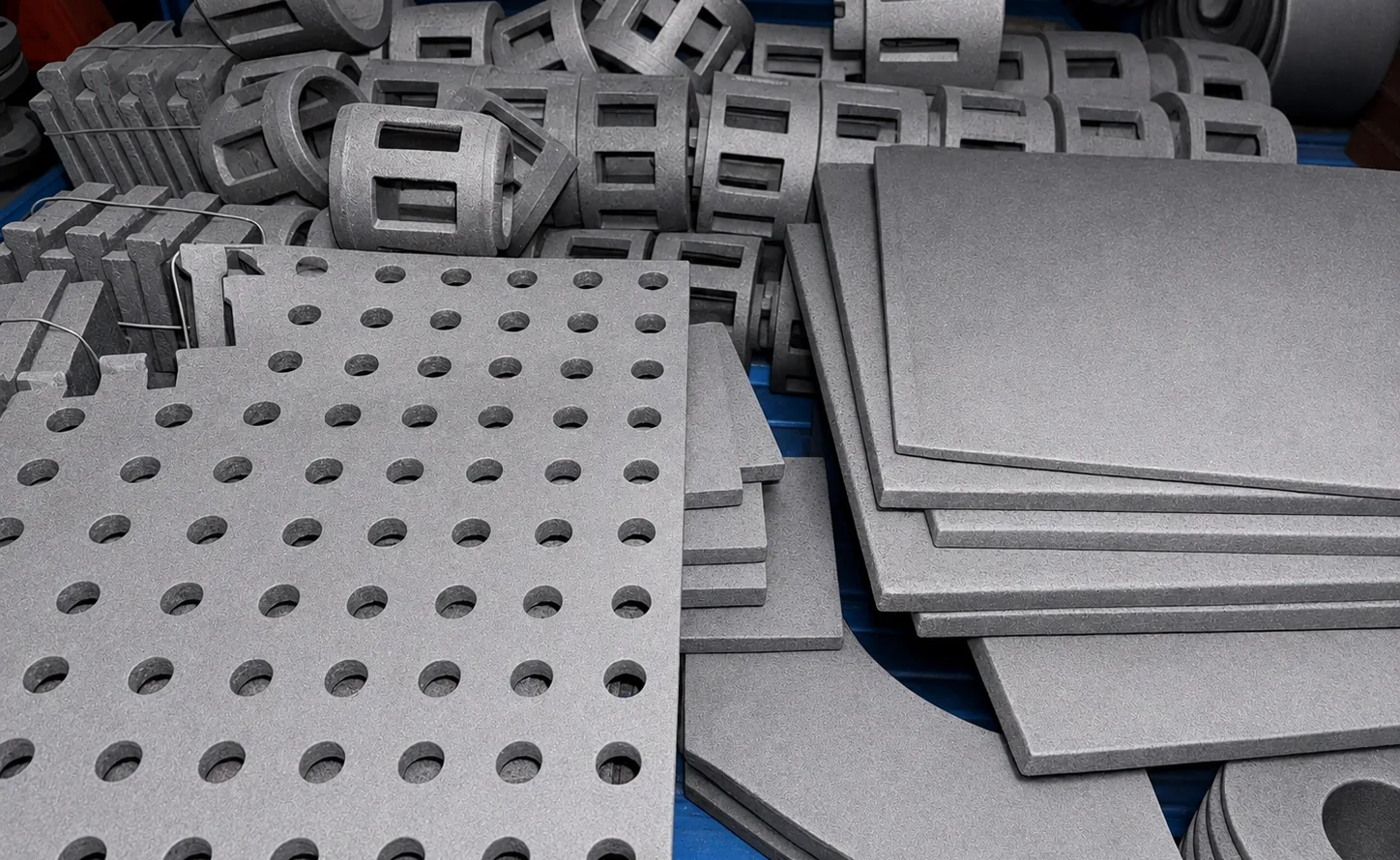

| Wear plates / chamber liners | Wear plates, chamber liners, guard plates and protection liners | Installed position, thickness, hole positions, drawing or old sample if available |
| Custom wear parts | Precision cast parts, high-chrome cast wear parts, tool steel replacement parts | Drawing, sample photos, measured dimensions, material/process request and working conditions |
How buyers should read the list
Do not stop at the name: describe the fitment information
Even when a buyer knows the part name, the RFQ may still be incomplete. A better first message combines the part category with machine model, old part photos, key dimensions, quantity and the buyer's expectation. For example, a buyer can state whether the part should be the same as the old part, whether process review is needed, or whether the old part can be sent as a sample.
Set-based parts also need special attention. A blade set, liner set or group of matching wheel parts should not be treated the same as one isolated replacement piece. If the equipment shows uneven wear, pattern shift or repeated failure, send photos of the related parts around the worn component. The visible worn part may be the symptom, while another matching part may also need review.
For custom wear parts, the most useful information is not a broad material claim. It is the drawing, old sample, measured dimensions, installed position and working condition. If the material is uncertain, write "same as old part" or "need review" rather than guessing a grade.
Mid-page RFQ
Not sure which category your old part belongs to?
Send photos from several angles, installed-position photos, machine model and key dimensions. Xindong can start the review from the part group before discussing exact replacement details.
Send Part PhotosThat sequence usually saves more time than guessing the English part name.
Buyer checklist
Information to send with a spare-parts inquiry
- Part category or "not sure" if the English name is unclear.
- Machine model, nameplate text or equipment photo.
- Old part photos from several angles and installed-position photos.
- Key dimensions, quantity and whether the quote is for singles, sets or a batch.
- Whether the part should be same as old part or needs material/process review.
- Destination country, packing request, inspection photo needs and document request.
FAQ
Questions before sending a spare-parts RFQ
What if I do not know the English part name?
Send the part category if you can, then provide photos, machine model, installed position and dimensions. Xindong can start the review from photos, drawings or samples.
Should I quote a full set or a single replacement piece?
State whether you need a single piece, a blade set, a liner set, a trial order or a replacement batch. This affects review, packing and quotation.
Can old machines or modified machines be reviewed?
Yes, but include machine photos, nameplate information, installed-position photos and any known retrofit history. Similar names do not guarantee interchangeability.
